Regular price $21,000.00 Sale

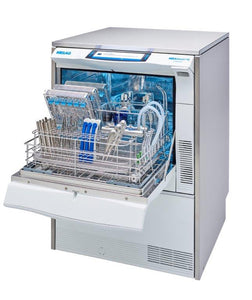

MELAtherm 10 Evolution - 3 Phase Power

Instrument decontamination even more efficiently with game-changing innovations

The MELAtherm 10 Evolution series excel with convincing performance and ease of use. In addition to the proven product highlights of MELAtherm 10 – including active drying, integrated process agent intake and documentation interfaces at no additional cost, MELAtherm 10 Evolution washer disinfectors provide brandnew innovations for an even more efficient instrument decontamination workflow. MELAtherm 10 Evolution sets new standards in operation: Its large Smart-Touch Display features an intuitive operating concept with helpful video tutorials.

These product highlights make MELAtherm 10 Evolution unique:

  • AquaBoost technology provides double rinsing pressure for up to 44 % enhanced instrument cleaning
  • Large Smart-Touch Display with video tutorials for program selection and operation as easy as never before
  • Active interior and exterior drying protects the instruments against corrosion and damage
  • Perform user authentication and batch approval directly on the device with ProControl
  • MELAconnect - access the device status and program progress via the mobile app
  • Batch documentation with CF card or network
  • Feeding process agents with the dosing unit without any additional charge
  • Extended maintenance cycles of 1000 cycles

 You retain full control even during the program run: the new MELAconnect App allows you to access the device status and program progress from anywhere in your practice or clinic. Perform a fast and paperless batch approval right on the display with ProControl. The new AquaBoost technology ensures up to 44 % better outcome with double rinsing pressure for optimal cleaning results. The increased pressure permits the decontamination of even more instruments. Reprocessing of 23 handpieces and instruments for up to 40 patients in only 60 minutes, this is possible only with AquaBoost.

Whatever the size and specialization of your practice and clinic is, over 80 different baskets and accessories are available to adapt the practice-optimized washing chamber to all your needs.

Click here to see how much can a Melatherm save over time.

Should the MELAtherm 10 be free-standing next to the floor unit, MELAG offers a stainless steel cover plate. The optional floor unit, also available, facilitates ergonomic working height and creates additional storage space. MELAtherm 10 will need a basis basket, with or without injector rail, at your option. Up to 11 hollow body instruments can be processed with the injector rail, e.g. suction tubes or dental handpieces and contra angles

To find a guide on what set up of accessories is right for you take a look at the Melatherm packages

MELA therm® 10 is available in "non-Evolution" models, the versions 400 volt (three phase current, MELA therm® 10 DTA) and 230 volt (alternating current, MELA therm® 10 DTB). If the installation location permits connection to a 400 volt power supply, we recommend the three pahse due to its significantly lower operating times.

Units can be networked along with the Evolution & Cliniclave series autoclaves directly to your computer to download data logs with a free FTP software.

J.S.T. Medical also offers a  2 Year Warranty

Each unit may require a Meladem 53 or 53C for treated water depending on the type of practice you have- sold separately

To see a quick guide on pre-install requirements click here

We strongly recommend adding on a water stop valve to the installation.

For a PDF brochure with more information please click here

Whats included in the price - Built in data logging, CF card, one set of chemicals and the labour cost for a Melag Technician to perform Install Qualification (IQ)** and a Operational Qualification (OQ)**. Freight for the Washer Disinfector, travel for the Melag technician and the Performance Qualification (PQ) are at the purchasers expense.

**IQ and OQ are included for most areas of NZ, please contact us to confirm for your area.

The Melatherm requires Salt on installation and periodically through its life.

Please note cycle times are shown in the pictures are stated without drying time included. Please add the drying time on top to know the total cycle time.

To request a sample box of accessories click here
